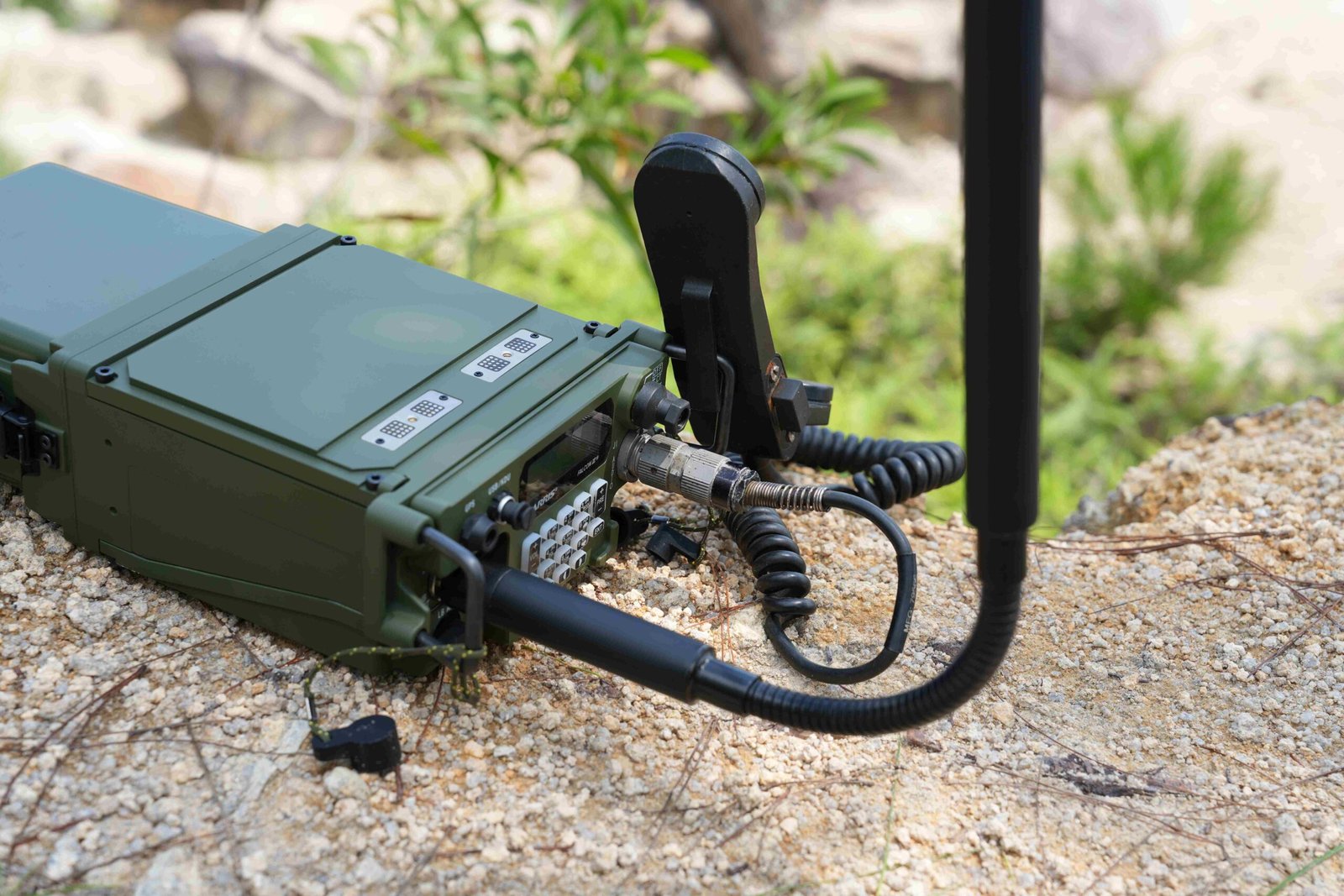

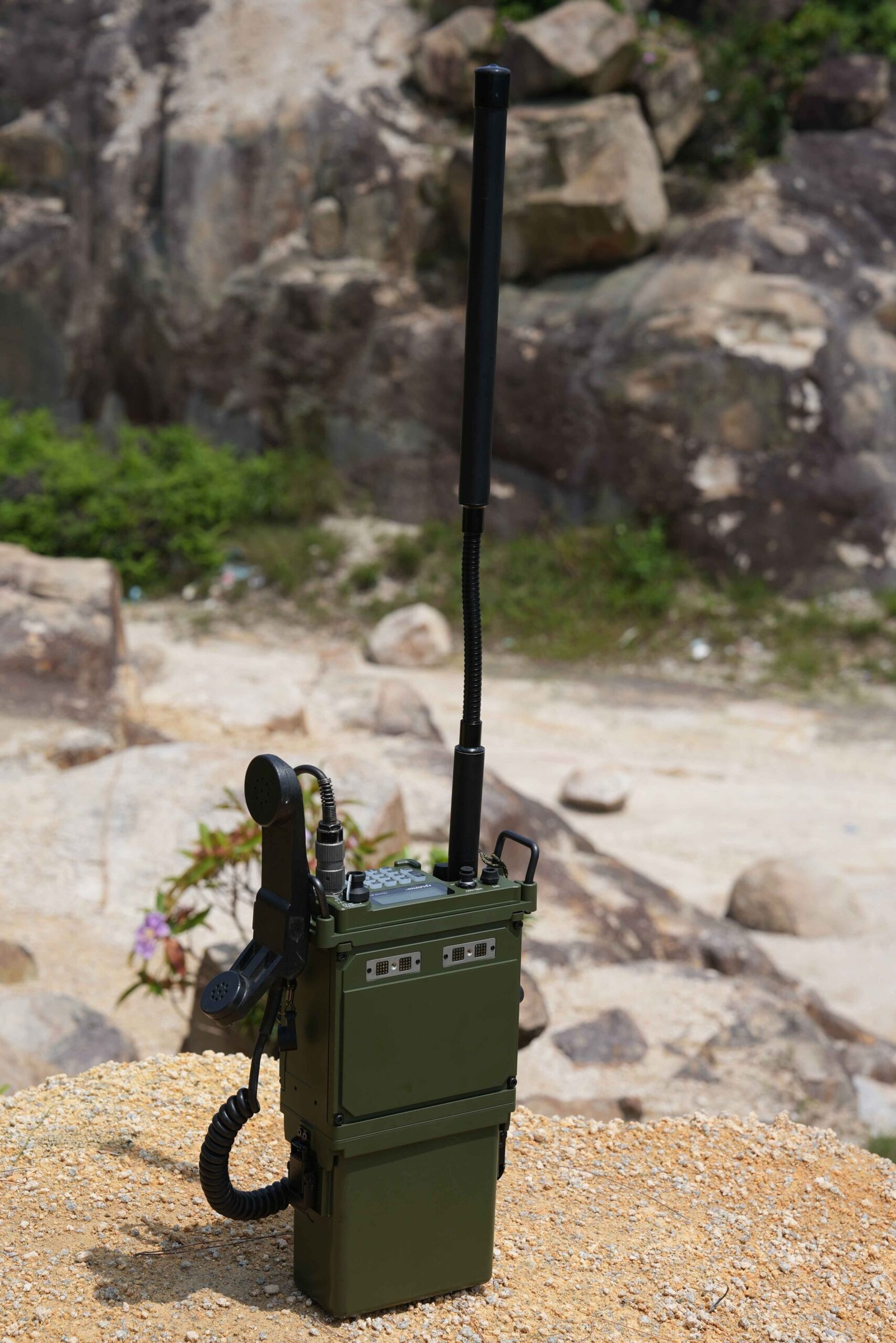

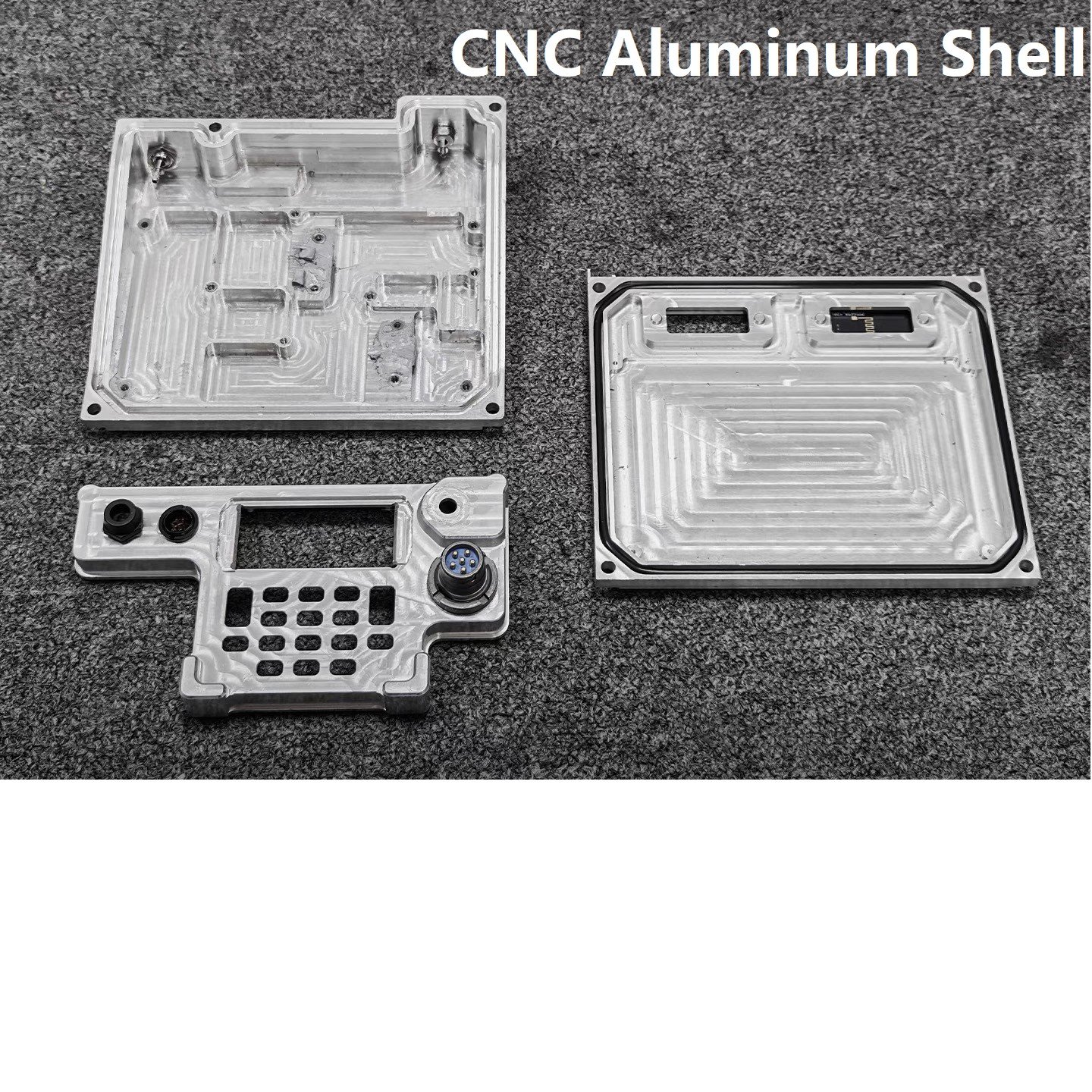

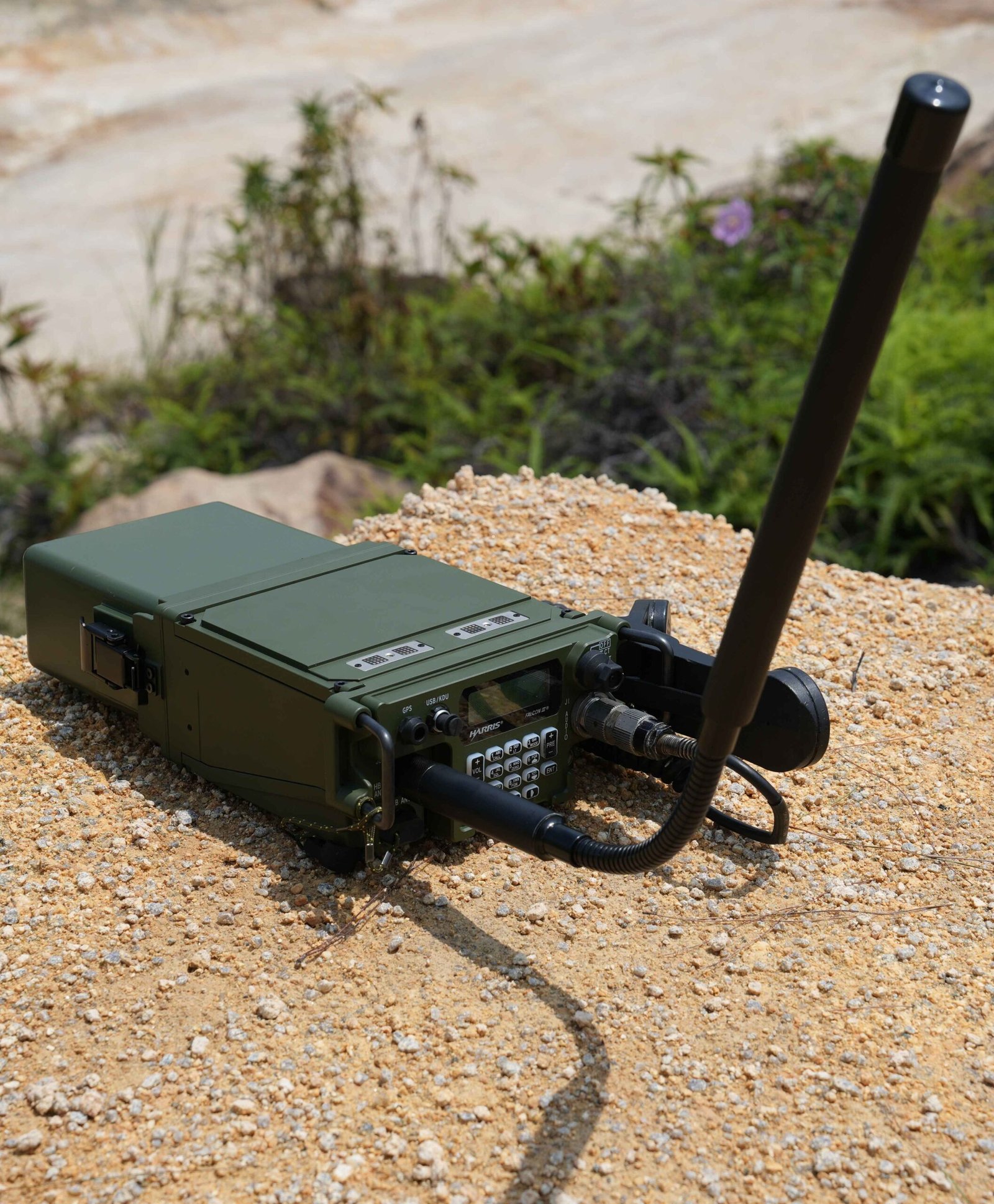

FCS PRC-117G UV DUAL BAND Hi-Power CNC Aluminum Shell HARRIS Radio 20W Full Set

FCS PRC117G Full Set W/ FCS BB2590 empty battery case

※Each Set Comes with：

FCS PRC117G×1

Battery Case×1

（to put Real BB2590 Battery，or FCS BB2590 Battery or 14.8V XT60 Plug Lithium Battery to Power up Radio）

Antenna×1

Handmic×1

FCS Empty BB2590 Battery box×1

（Empty,dismountable FCS made BB2590 Battery,need to put 16pcs of flat top 18650 battery cells,Battery cells are NOT included)

FCS BB2590 Charger×1

MAX Output Power:20W

Frequency Range :UHF: 400~480MHz – VHF: 136~174MHz

# Transceiver Parameters

Frequency Range | UHF: 400~480MHz – VHF: 136~174MHz |

FM Frequency Range | 88~108MHz (Receive Only) | Step | 5K/6.25K | Modulation Mode | NFM/WFM (Receive Only) | Operating Voltage Range | 16.8V (Standard) 12~17V (Min~Max) | Modulation Deviation | Narrowband: 1.5K – Wideband: 3K | Antenna Impedance | 50Ω | Operating Temperature | -20℃~90℃ | # Receiver Characteristics

Receive Current | 70mA | Standby Current | 68mA | Sensitivity | -122dBm | Signal-to-Noise Ratio (S/N) | 40dB | Adjacent Channel Selectivity | 61dB | Intermodulation Immunity | 60dB | Spurious Immunity | 66dB | Co-Channel Rejection | -8dB | Blocking Immunity | 84dB | Audio Output Distortion | 2% | Audio Output Level | 300mV | # Transmitter Characteristics Transmit Current | 2000~3500mA | Power | 5~20W | Frequency Error | 50Hz | Modulation Sensitivity | 8mV | Modulation Deviation | Narrowband: 2KHz – Wideband: 4KHz | Modulation Distortion | 1.5% | Signal-to-Noise Ratio | 40dB | Adjacent Channel Power Ratio | 62dB | **CTCSS** Deviation | Narrowband: 0.4KHz – Wideband: 0.7KHz | # WiFi Parameters Standard | IEEE 802.11 n (Wi-Fi 4) | Transmit Power | 19.5dBm | # Bluetooth Parameters Transmitter Characteristics | Low Energy Bluetooth 1 Mbps | Operating Channel Center Frequency | Min: 2402MHz – Max: 2480MHz | RF Transmit Power | Min: -24dBm – Max: 20dBm | Sensitivity @30.8% PER | Typical: -97.5dBm |
