PRN Blade Folding Whip Gooseneck Antenna 15W 30-512Mhz RF3152-AT152

※Each Item Comes With

1PCS

PRN Made 15W WideBand 30-512Mhz Long Blade Folding Whip Gooseneck Antenna

Antenna for sale ，PRC152 and accessories are not included

Port：TNC

Support Frequency：30-512 Mhz (Full UHF VHF)

Length：105cm（Fully open）

Gain：3.5dBi

SWR:＜1.5（last photo shows SWR curve）

This antenna is a long folding blade gooseneck whip antenna developed and manufactured by PRN Precision Industry.

It supports a maximum transmit power of up to 15 watts and is compatible with all PRC-152, PRC-163, PRC-148 and similar radios available on the market.

All structural details and features of this antenna are faithfully reproduced in a 1:1 configuration based on the original design.

The encapsulation and sealing process is identical to the original product. The antenna base is also side-marked with the HARRIS logo and model identification code, matching the original appearance.

The internal antenna structure follows the same design as the original HARRIS antenna.

The antenna provides good VSWR performance within the 136–174 MHz (VHF) and 400–512 MHz (UHF) frequency ranges.

This RF antenna base can also be used as a replacement for the original TCA 10-watt antenna.

When a TCA-152 radio is upgraded to a 12.6V battery, using this antenna allows the radio to achieve up to 15 watts of transmit output power.

Product Features

※ Available in 3 lengths: 50cm,105 cm and 125 cm, identical to the original Harris RF-3152 AT152.

※ The antenna length is cut exactly according to the original specifications and is available in a 105cm Lengh.

※ Original structural design, three-section detachable configuration, allowing flexible combination with shorter blade sections.

※ Gooseneck section features a matte electroplated finish, with size, color, and appearance consistent with the original product.

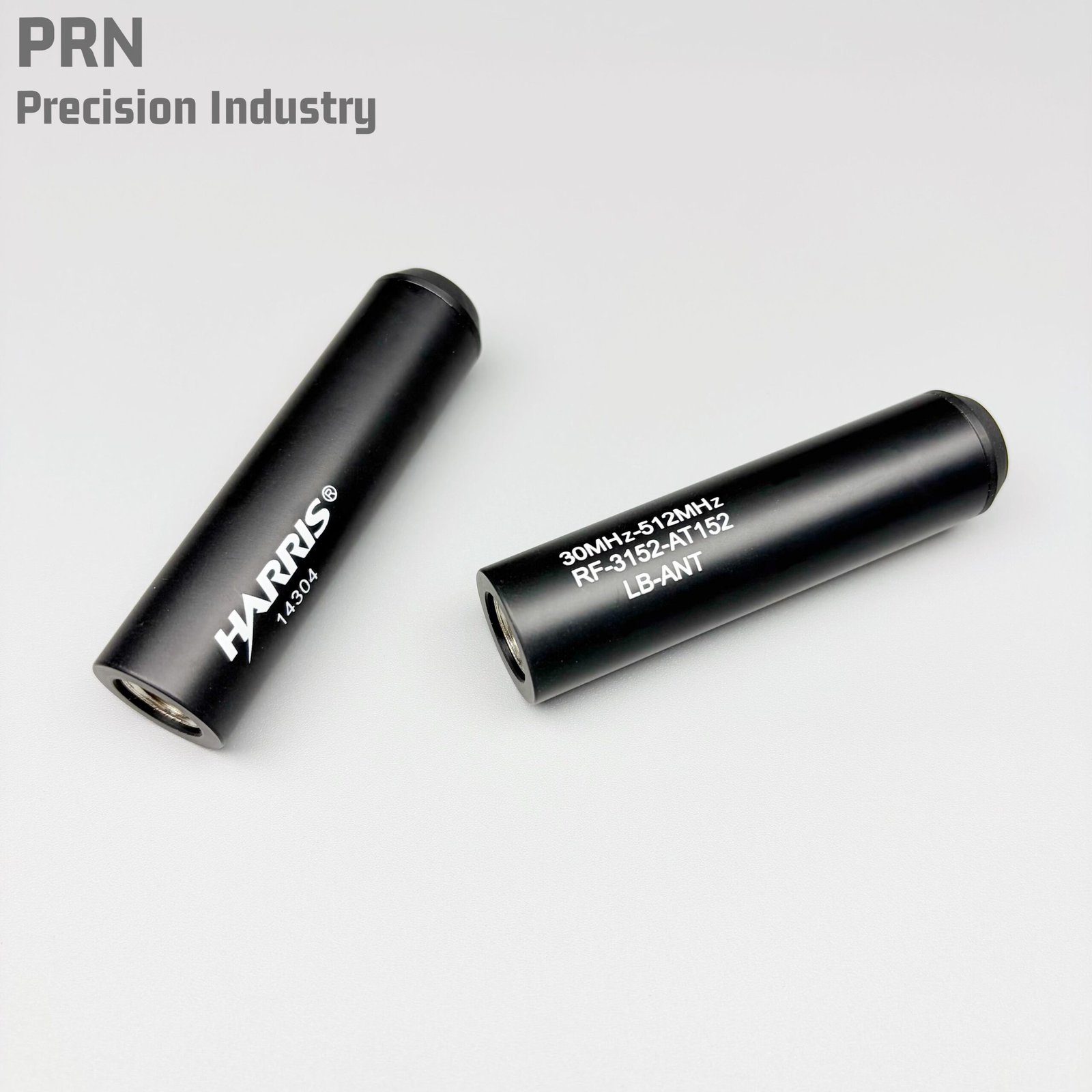

※ The antenna base is marked with the HARRIS logo and product code RF3152-AT152.

※ Uses the same potting and sealing process as the original antenna, ensuring accurate structural reproduction.

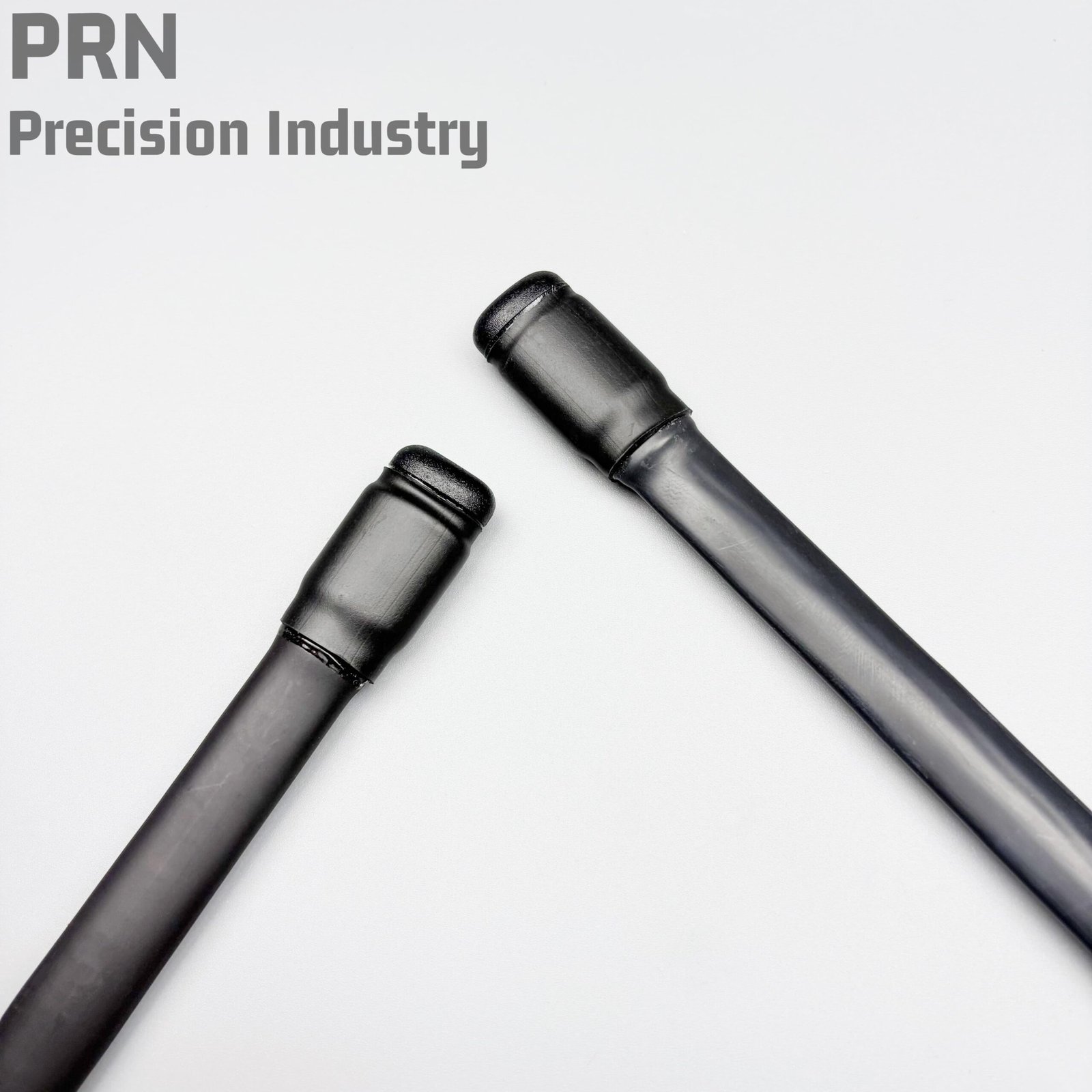

※ The outer antenna jacket and head structure follow the same encapsulation style and details as the original product.

※ The Velcro retention strap matches the original in both size and appearance.

※ Fully compatible with all replica and genuine PRC-152 / PRC-163 / PRC-148 radios, as well as original antenna components.

※ When a TCA-152 radio is equipped with a 12V battery, this antenna enables the radio to reach up to 15 watts transmit output power.

※ Excellent VSWR performance, covering the full 30–512 MHz band, with particularly strong performance in VHF and UHF frequency ranges.
